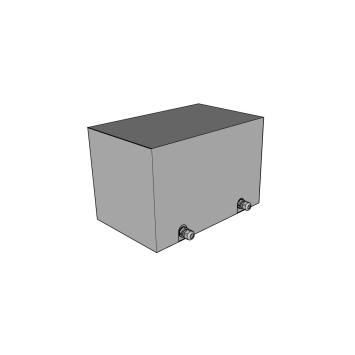

EREA 3 phase isolation transformer 400V // 230V-400V 1,6kVA SPT1600/D/BTE/IP65

Item No.: SPT1600/D/BTE/IP65

Delivery time: 2-3 weeks (contact us)

(Price excluding VAT) 2.150,73
2.602,38
Of betaal in termijnen vanaf 86,75 p/m. Meer info
Description

Technical specifications

Brand EREA
Commercial Order Number SPT1600/D/BTE/IP65
EAN 5414503121295
Series Blue e3
Energy efficient Yes
Class Three-phase isolating transformer
Primary voltage 3x 400 Vac ∆
Secondary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 1600VA (1.6KVA)
Dielectric strength referred to frame (Vac) 2500 Vac
Dielectric strength to mass (Vac) 4500 Vac
Degree of protection IP65
Standards

EN 61558-2-4

Maximum ambient temperatur ta (°C) 40 °C
Application For Industrial Applications
Protection class Prepared for class I
Temperature Class F
Voltage drop (dU%) 3.2%
Efficiency  96%
Pcu (W) 69 W
Po (W) 35 W
Size A x B x C (mm) 309x234x261mm
Weight 32kg
Primary connection Screw terminals 4 mm²
Secondary connection Screw terminals 4 mm²
Finish Vacuum and pressure varnish impregnated
