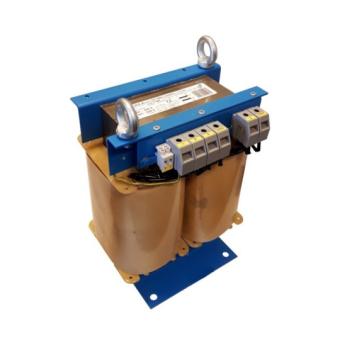

EREA 1 phase isolating transformer EV 0-230-245V//0-230V 3700VA 230EC3700/IRC

Item No.: 230EC3700/IRC

Single-phase isolating transformer

1.451,39
(Price excluding VAT)
Enclosure
Enclosure
Trillingsdemper
Of betaal in termijnen vanaf 48,38 p/m. Meer info
Description

Technical specifications

Brand EREA
Commercial Order Number 230EC3700/IRC
EAN 5414503115362
Class Single-phase energy-efficient isolating transformer IP00 Low Inrush current - Upri 230-245V Usec 0-230V - Power 3.7KVA
Primary voltage 0 - 230 - 245Vac
Secondary voltage 230 Vac
Power 3.7KVA
Degree of protection IP00
Voltage drop (dU%) 2.1%
Dielectric strength to mass (Vac)) 2000Vac
Standards

EN 61558-2-4

EN 60742

Max. ambient temperature Ta (°C) 40 °C
Temperature class B
Application For electric charging stations
Protection class Prepared for class I
Efficiency 96.9%
Pcu (W) 78W
Po (W) 42W
Size A x B x C (mm) 240x200x225mm
Size D (mm) 200mm
Size E (mm) 177mm
Weight 42kg
Primary connection Screw terminals 10 mm²
Secondary connection Screw terminals 10 mm²
Finish Vacuum- and pressure- varnish impregnated
Φ (mm) 11mm

Options

On request Other voltage and power ratings
Connections with insulated wires and mains cables
Option Housing IP20 (accessory) K20EC/030
Option Housing IP23 (accessory) K23EC/030
Option Silent Block (accessory) SILENT BLOCK 50
