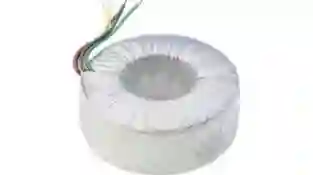

Noratel toroidal transformer 230V 2x30V 120VA RT120-2030

Item No.: RT120-2030
Noratel

Price on request!!!

Ask offer

€0,00
(Price excluding VAT)
Description

Noratel

Noratel toroidal transformer 230V 2x30V 120VA RT120-2030


Specifications :
Power: 120VA
Cu-loss: 18,3W
Fe-loss: 1,4W
Test and isolation voltage: 4kV AC RMS
Insulation class: B (130°C)
Ambient temperature: 40°C
Primary winding: 230V
Secondary winding: 2x 30V
Secondary windings in series gives: 60V - 2,0A
Secondary windings in parallel gives: 30V- 4,0A
Thermally protected: Yes
Diameter: 89mm
Height: 52mm
Inside diameter: 36mm
Weight 1,4Kg
Mounting material is included: Yes
Type number: RT120-2030
Article number: 4-115-112230

EN61558UL/CSA approvedCESafety Isolating Transformer230v50/60Hz
