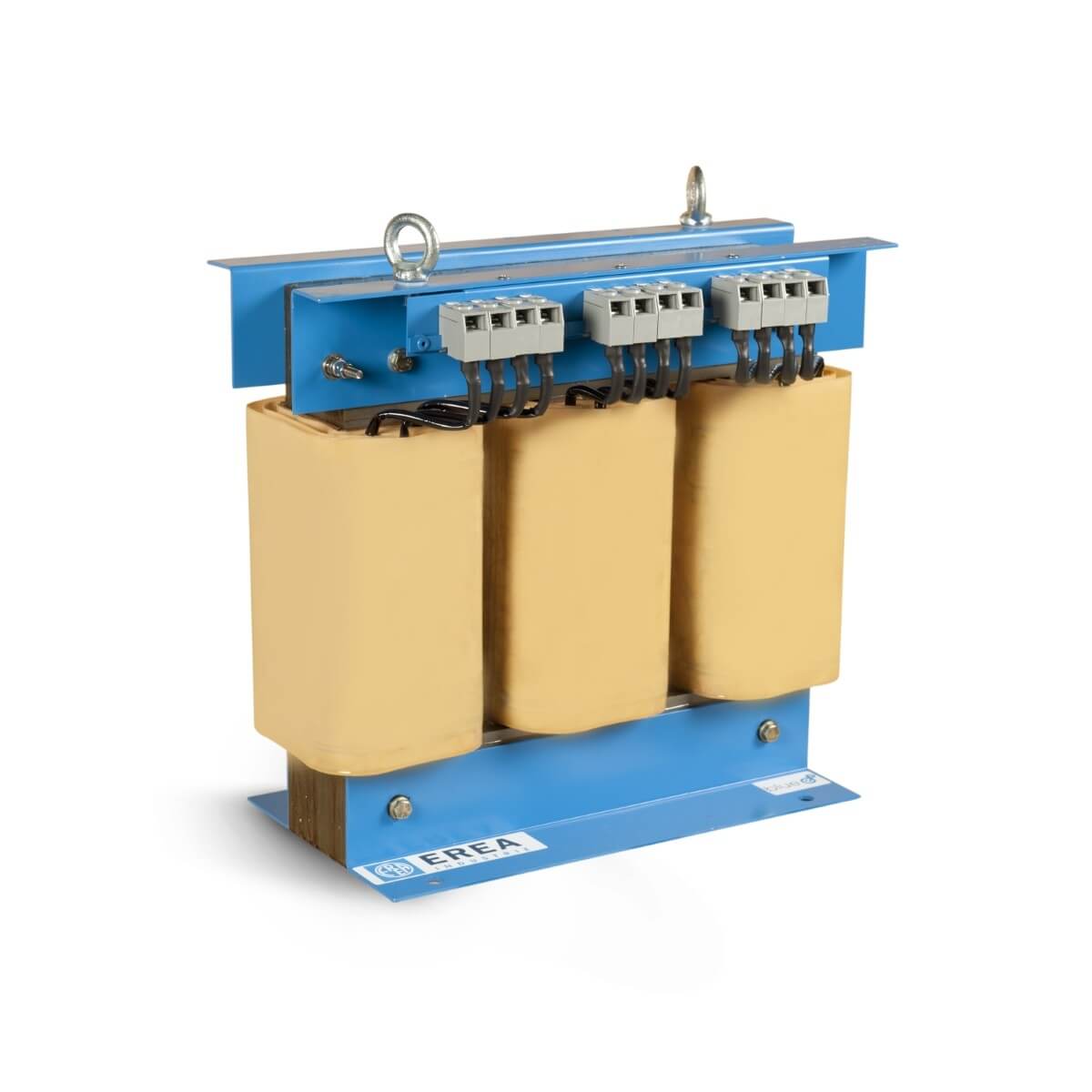

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 20000VA (20KVA) SPT20000/BTE

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 20000VA (20KVA) SPT20000/BTE

Name: EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 20000VA (20KVA) SPT20000/BTE
Brand: EREA
SKU: SPT20000/BTE
Price: 8850.86 EUR
Availability: InStock

Item No.: SPT20000/BTE

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €7.314,76

€8.850,86

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf €295,03 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT20000/BTE
EAN	5414503099204
Class	Energy Efficient Protective Transformer (BTE) - IP00 - Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N - Vermogen 20000VA

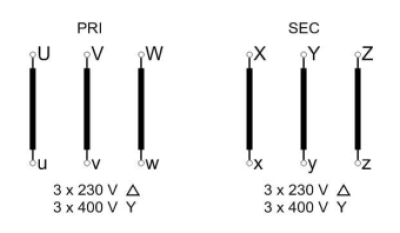

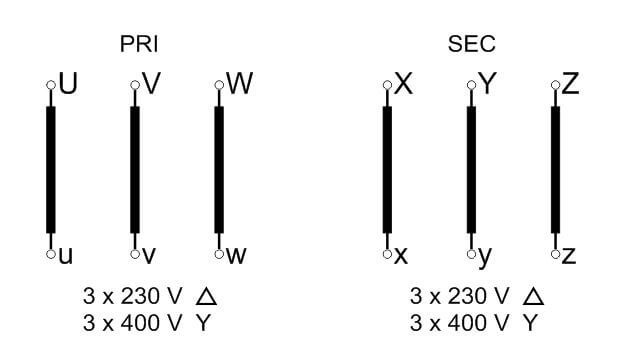

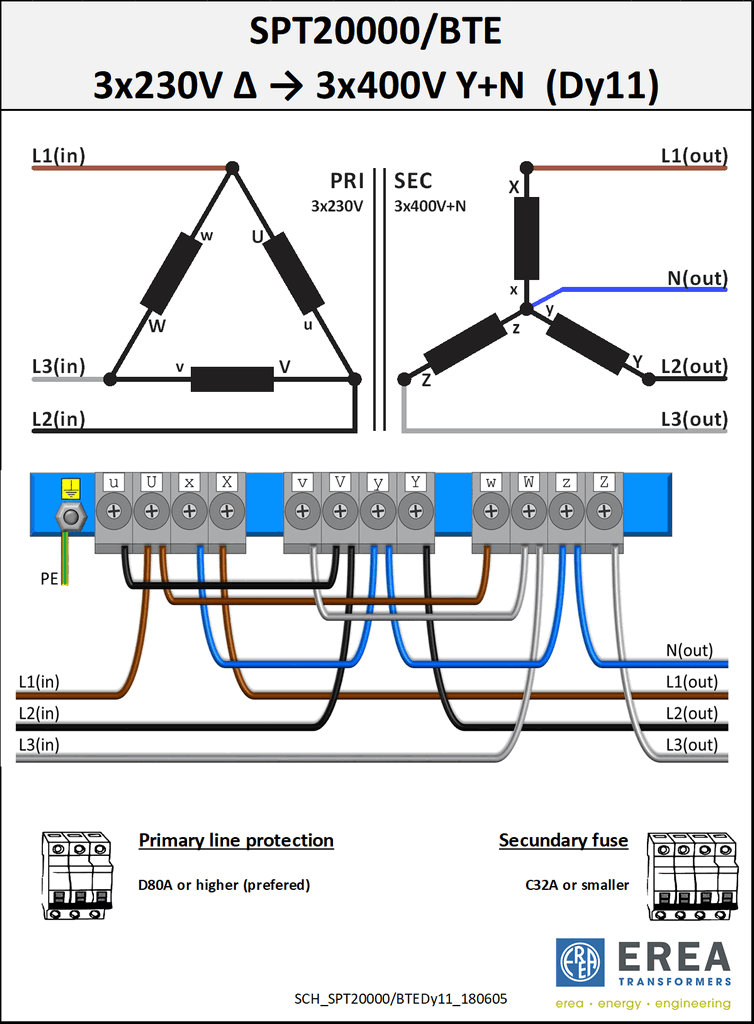

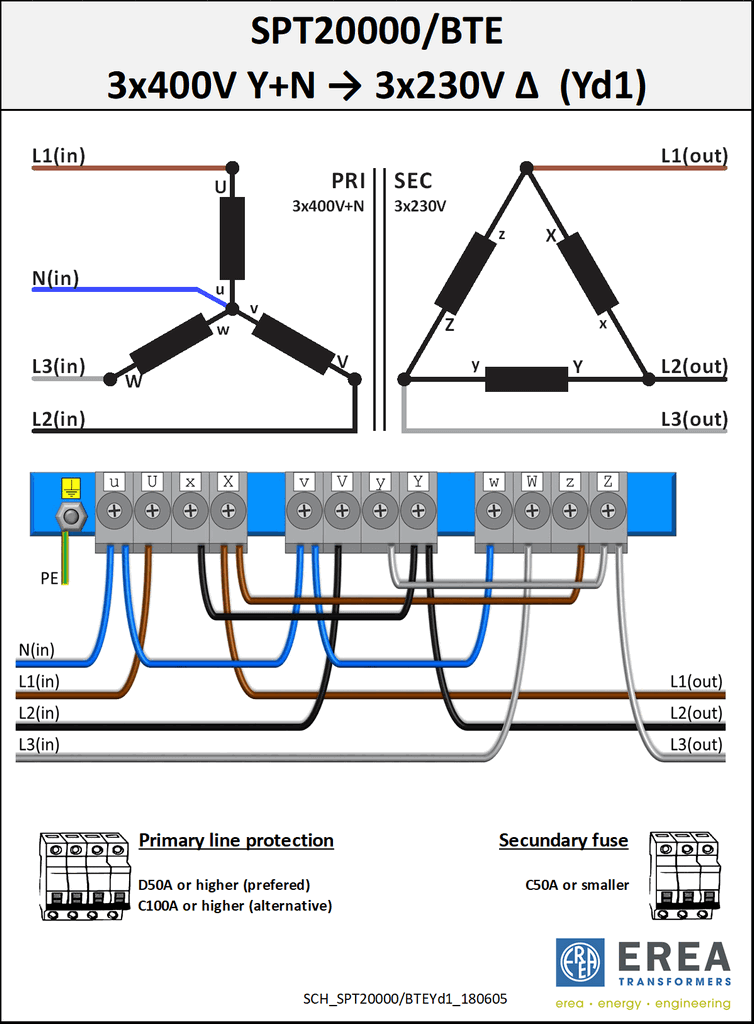

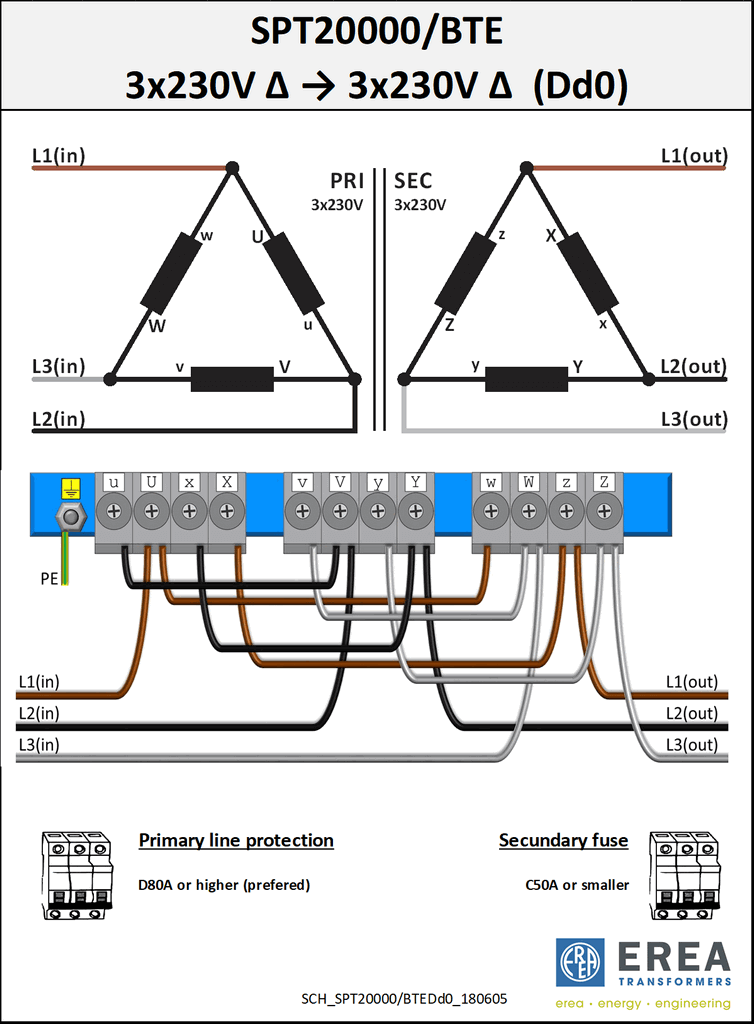

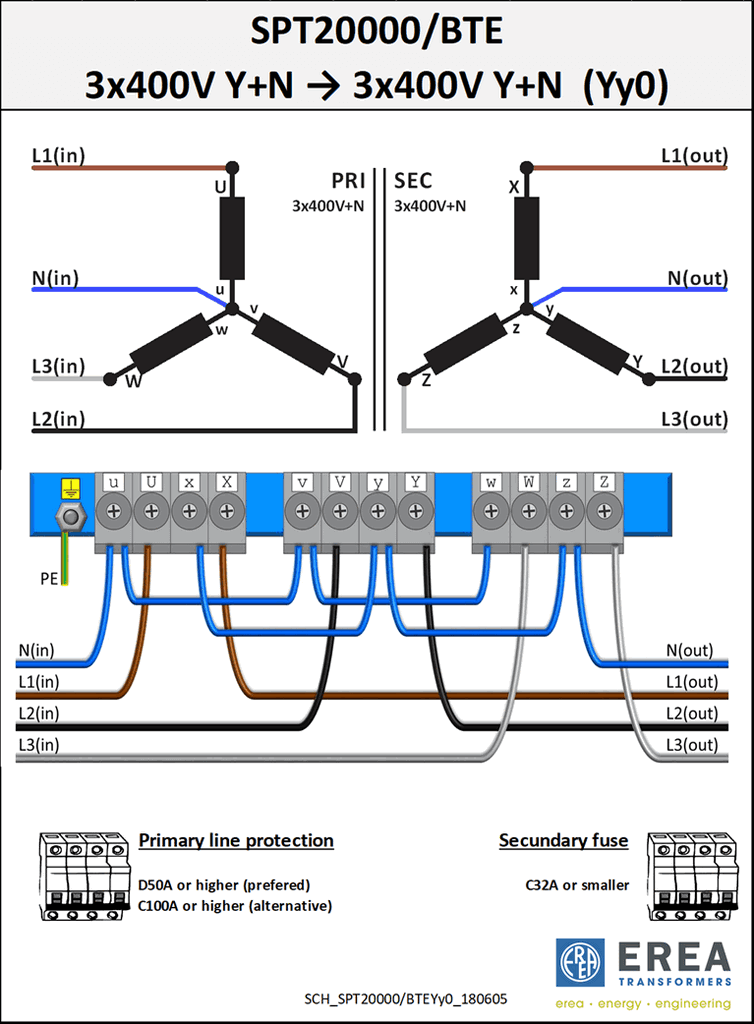

Primary voltage	3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3 x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	20000VA (20KVA)
Degree of protection	IP00
Efficiency	97,7%
Pcu (W)	354W
Po (W)	117W
Voltage drop (dU%)	1.65%
Dielectric strength to mass (Vac)	2500 Vac
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	F

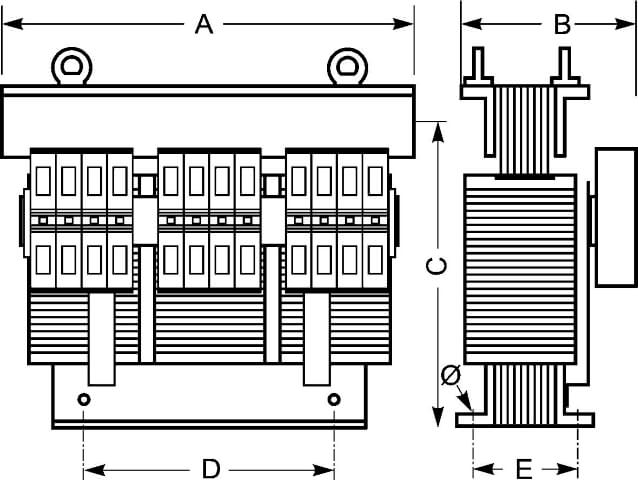

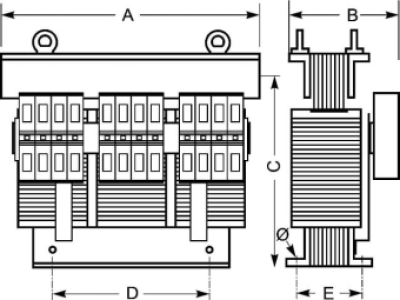

Size A x B x C (mm)	480x300x415mm
Size D (mm)	320mm
Size E (mm)	200mm
Weight	130kg
Primary connection	Moerbevestiging M8
Secondary connection	Moerbevestiging M8
Φ (mm)	11 mm
Finish	Vacuum and pressure impregnated

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire)	K20BTE/050
Option enclosure IP23 (accessoire)	K23BTE/050
Option Damper (accessoire)	SILENT BLOCK 50
