EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 1000VA (1KVA) SPT1000/BTE

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 1000VA (1KVA) SPT1000/BTE

Name: EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 1000VA (1KVA) SPT1000/BTE
Brand: EREA
SKU: SPT 1000/BTE
Price: 978.20 EUR
Availability: InStock

Item No.: SPT 1000/BTE

Current delivery time (contact us)

(Price excluding VAT) €808,43

€978,20

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf €32,61 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT 1000/BTE
EAN	5414503105165
Class	Energy Efficient Protective Transformer (BTE)

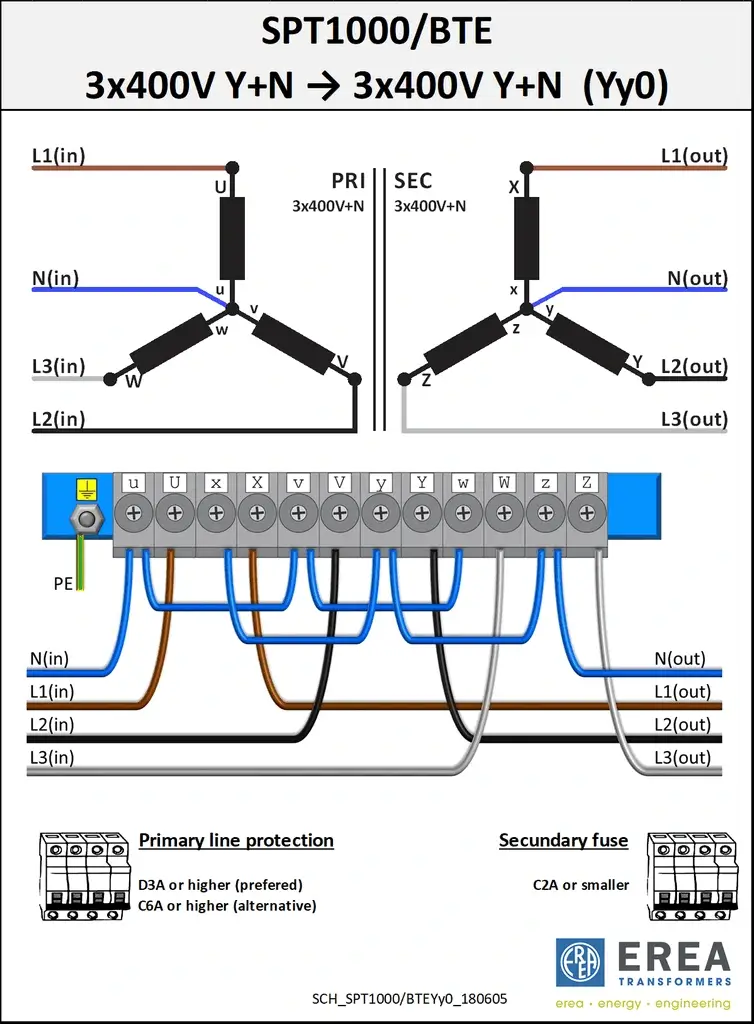

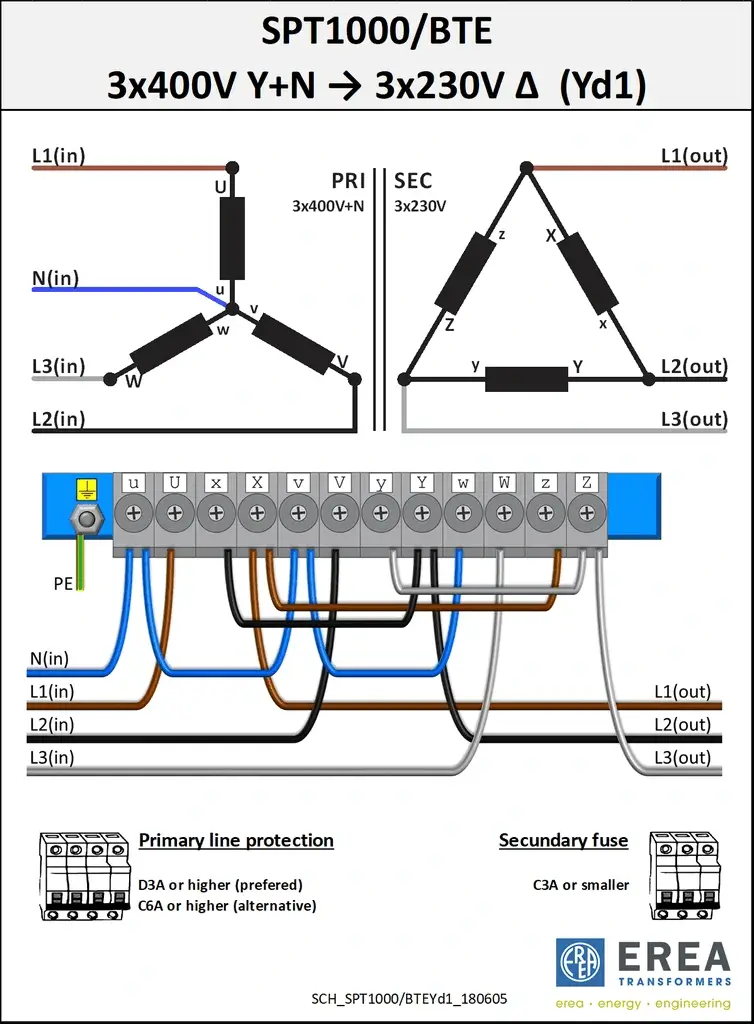

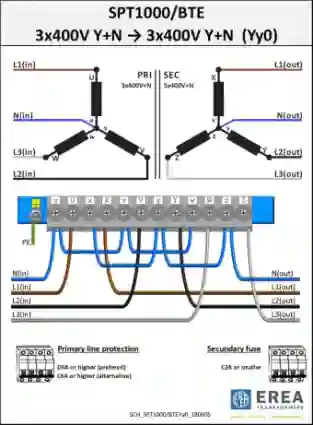

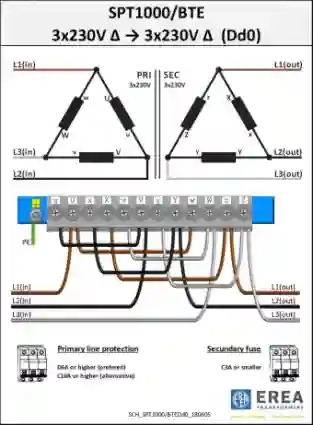

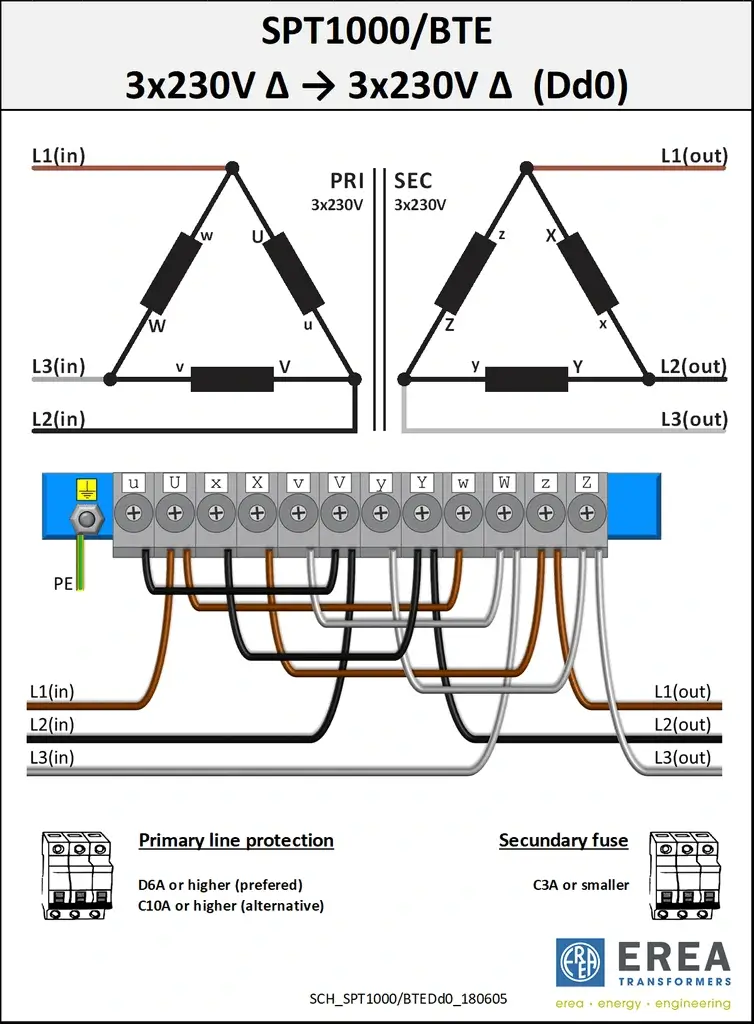

Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	1000VA (1KVA)
Degree of protection	IP00
Voltage drop (dU%)	4.7%
Dielectric strength to mass (Vac)	2500 Vac
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Temperature Class	F
Efficiency	94,3%
Pcu (W)	46 W
Po (W)	14 W
Size A x B x C (mm)	180x110x175mm
Size D (mm)	75mm
Size E (mm)	90mm
Weight	10.3kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Finish	Vacuum and pressure impregnated
Φ (mm)	9 mm
Protection Class	Prepared for Protection Class I

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire)	K20BTE/005
Option enclosure IP23 (accessoire)	K23BTE/005
Option Damper (accessoire)	SILENT BLOCK 20
