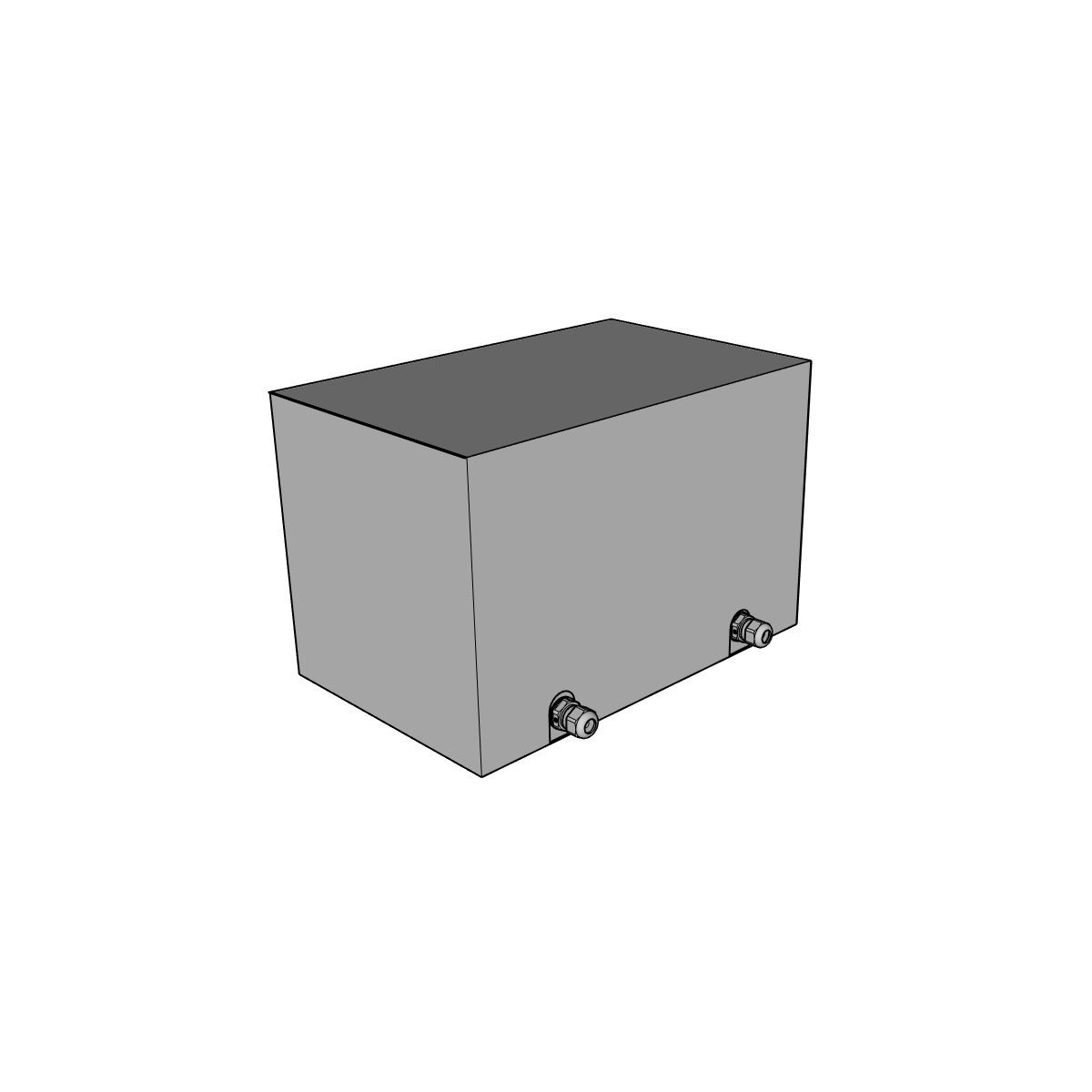

EREA 3 phase isolation transformer 400V//230V-400V 10kVA SPT10000/D/BTE/IP65

Name: EREA 3 phase isolation transformer 400V//230V-400V 10kVA SPT10000/D/BTE/IP65
Brand: EREA
SKU: SPT10000/D/BTE/IP65
Price: 8847.21 EUR
Availability: InStock

Item No.: SPT10000/D/BTE/IP65

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €7.311,74

€8.847,21

Of betaal in termijnen vanaf €294,91 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT10000/D/BTE/IP65
EAN	5414503116536
Series	Blue e³
Energy efficient	Yes
Class	Three-phase isolating transformer
Primary voltage	3x 400 Vac ∆
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	10000VA (10KVA)
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP65
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Voltage drop (dU%)	1.82%
Efficiency	97.5%
Pcu (W)	313 W
Po (W)	102 W
Size A x B x C (mm)	539x269x433mm
Weight	122kg
Primary connection	Screw terminals 10 mm²
Secondary connection	Screw terminals 10 mm²
Finish	Vacuum and pressure varnish impregnated
