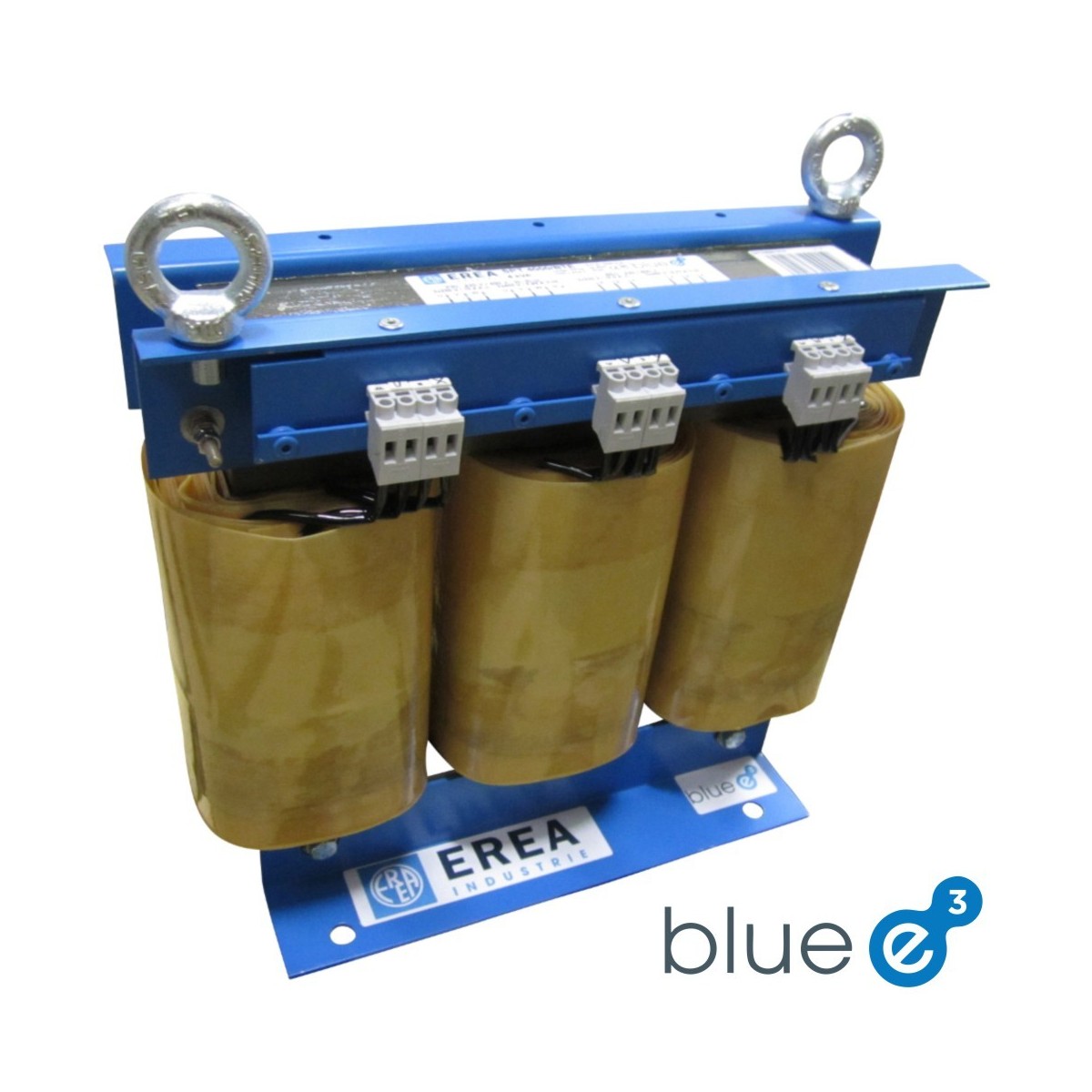

EREA 3 phase isolation transformer 230-400V//230V-400V 4kVA SPT4000/BTE

EREA 3 phase isolation transformer 230-400V//230V-400V 4kVA SPT4000/BTE

Name: EREA 3 phase isolation transformer 230-400V//230V-400V 4kVA SPT4000/BTE
Brand: EREA
SKU: SPT4000/BTE
Price: 2299.06 EUR
Availability: InStock

Item No.: SPT4000/BTE

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €1.900,05

€2.299,06

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf €76,64 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT4000/BTE
EAN	5414503099150
Class	Three-phase isolating transformer

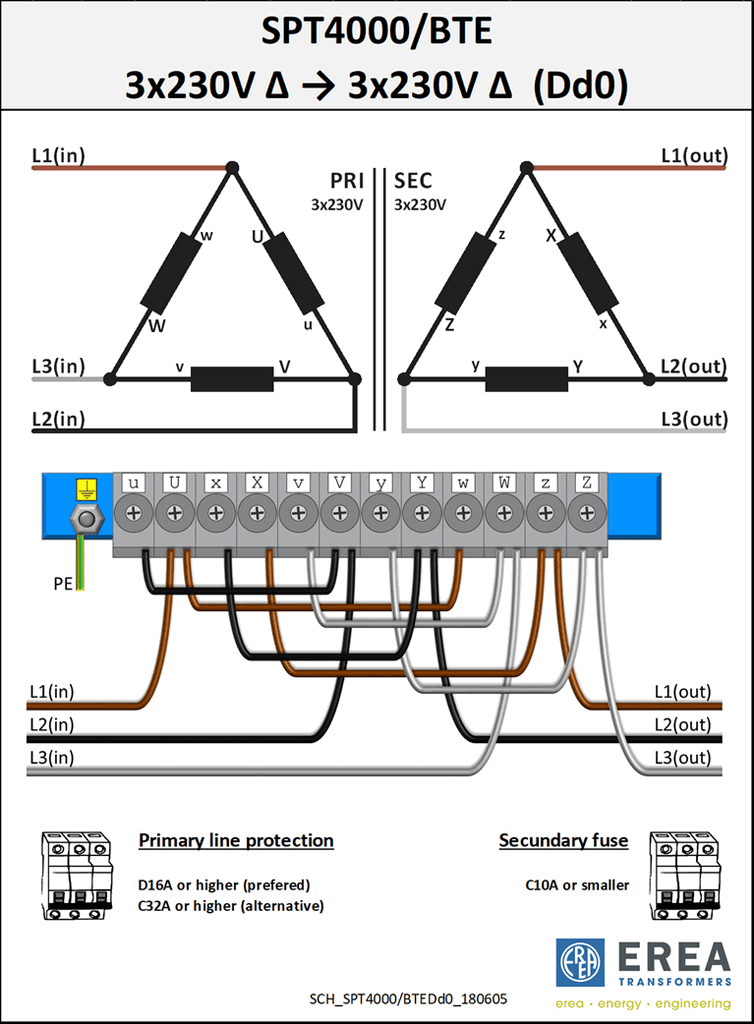

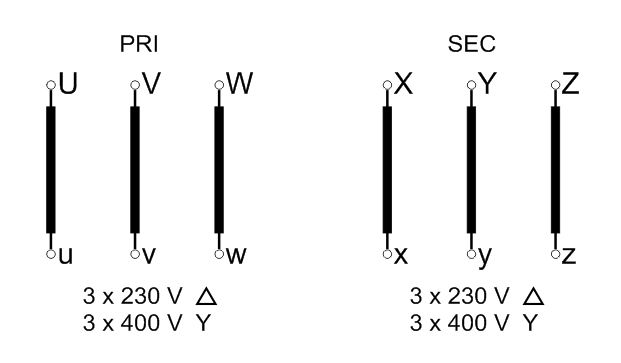

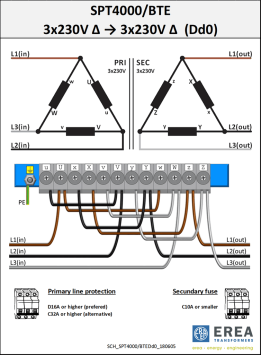

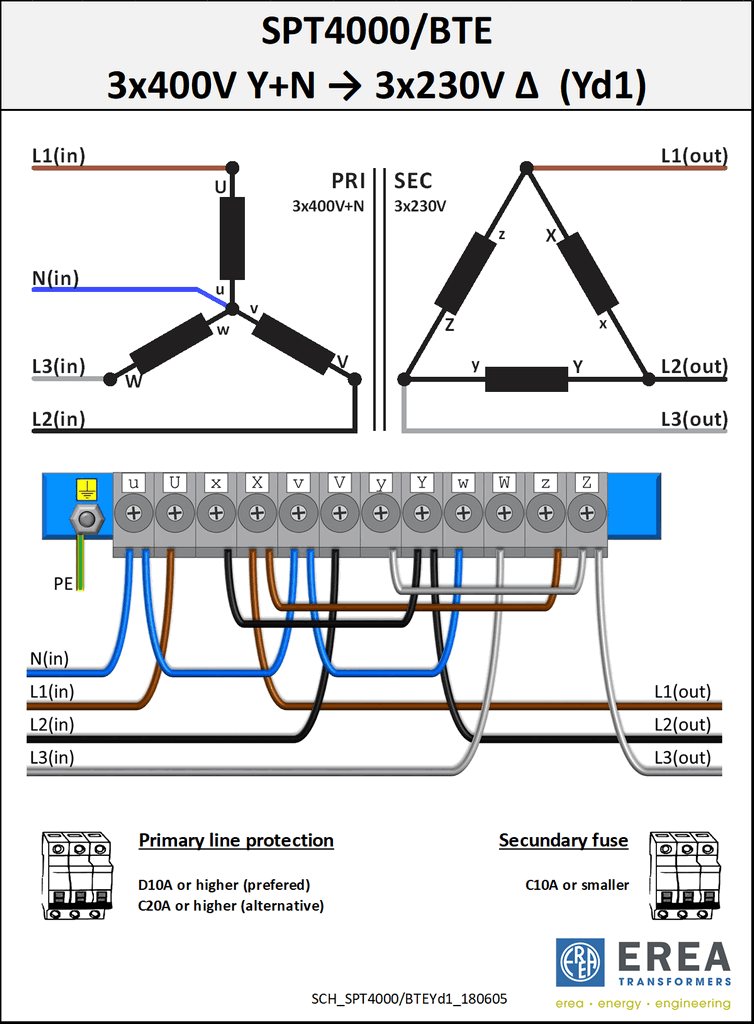

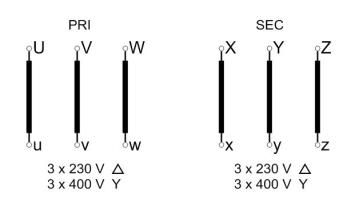

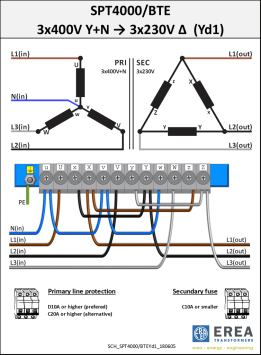

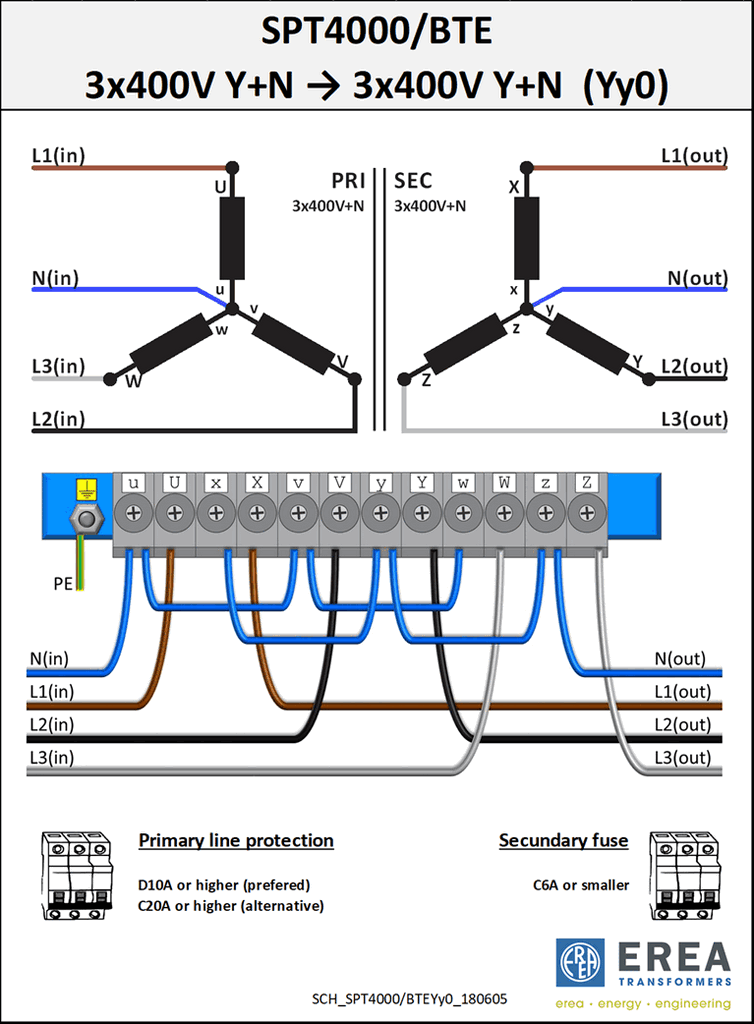

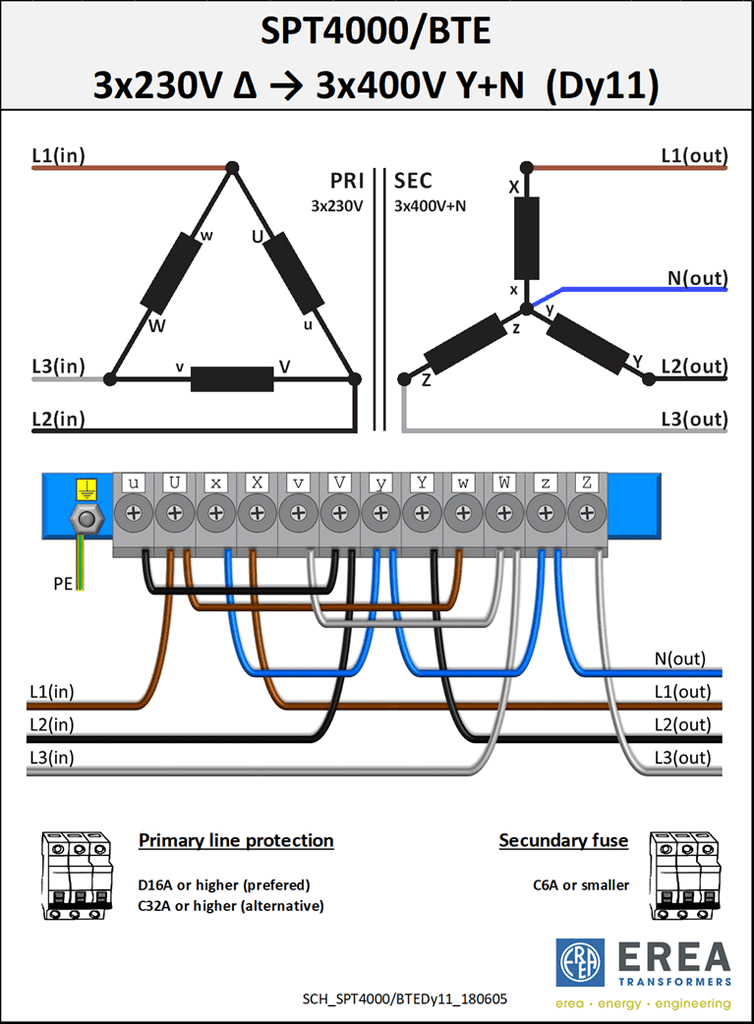

Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	4000VA (4KVA)
Voltage drop (dU%)	4.7%
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP00
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Efficiency	96.3%
Pcu (W)	108 W
Po (W)	44 W

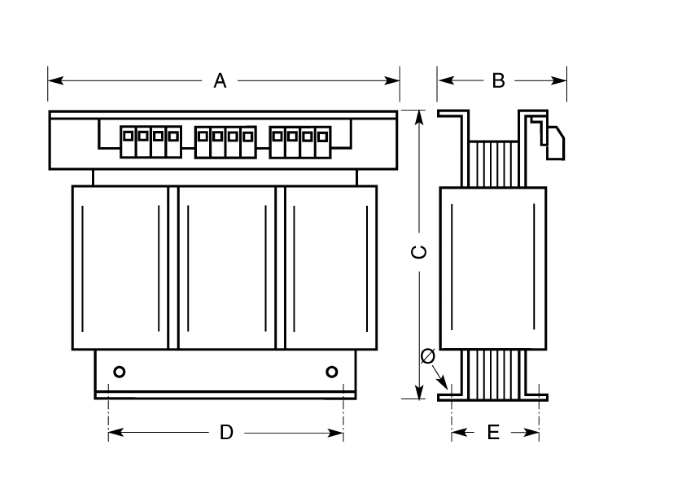

Size A x B x C (mm)	360x150x310mm
Size D (mm)	240mm
Size E (mm)	120mm
Weight	35.6kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Φ (mm)	11 mm
Finish	Vacuum and pressure varnish impregnated

Options
On request	Protection class II Degree of protection IP23, IP44 and IP65 Other voltages and other powers Zig-Zag switching groups Connections with sockets and power cords With fuses With electrostatic screens Treatment for tropical resistance
Option Enclosure IP20 (accessory)	K20BTE/030
Option Enclosure IP23 (accessory)	K23BTE/030
Option Enclosure IP44 (accessory)	K44BTE/030
Option Damper (accessory)	SILENT BLOCK 20
