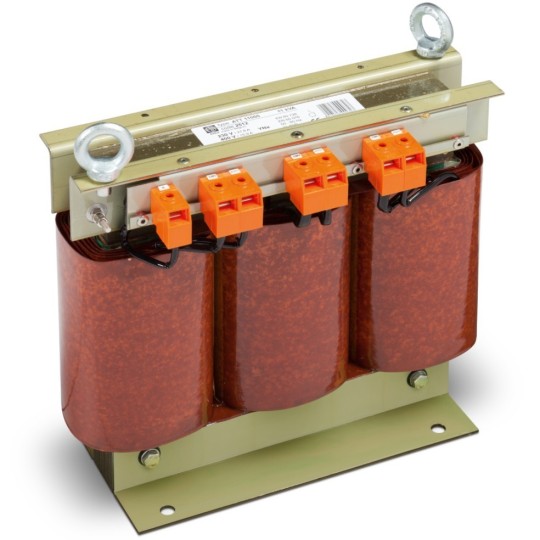

EREA 3 phase Autotransformer 0-230-400V 11kVA ATT 11000

Name: EREA 3 phase Autotransformer 0-230-400V 11kVA ATT 11000
Brand: EREA
SKU: ATT 11000
Price: 2163.89 EUR
Availability: InStock

Item No.: ATT 11000

Delivery time: Please contact us for current delivery times

(Price excluding VAT) €1.788,34

€2.163,89

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf €72,13 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	ATT 11000
EAN	5414503000323
Class	Three-phase autotransformer
Primary voltage	3x 0-230-400 Vac Y+N
Secondary voltage	3x 0-230-400 Vac Y+N
Rated power	11000VA (11KVA)
Degree of protection	IP00
Voltage drop (dU%)	1.65%
Efficiency (%)	97%
Pcu (W)	173 W
Po (W)	56 W
Dielectric strength referred to frame (Vac)	2500 Vac
Standards	EN 60726 EN 60076
Application	For Industrial Applications
Protection class	Prepared for class I
Maximum ambient temperatur ta (°C)	40 °C
Temperature Class	B

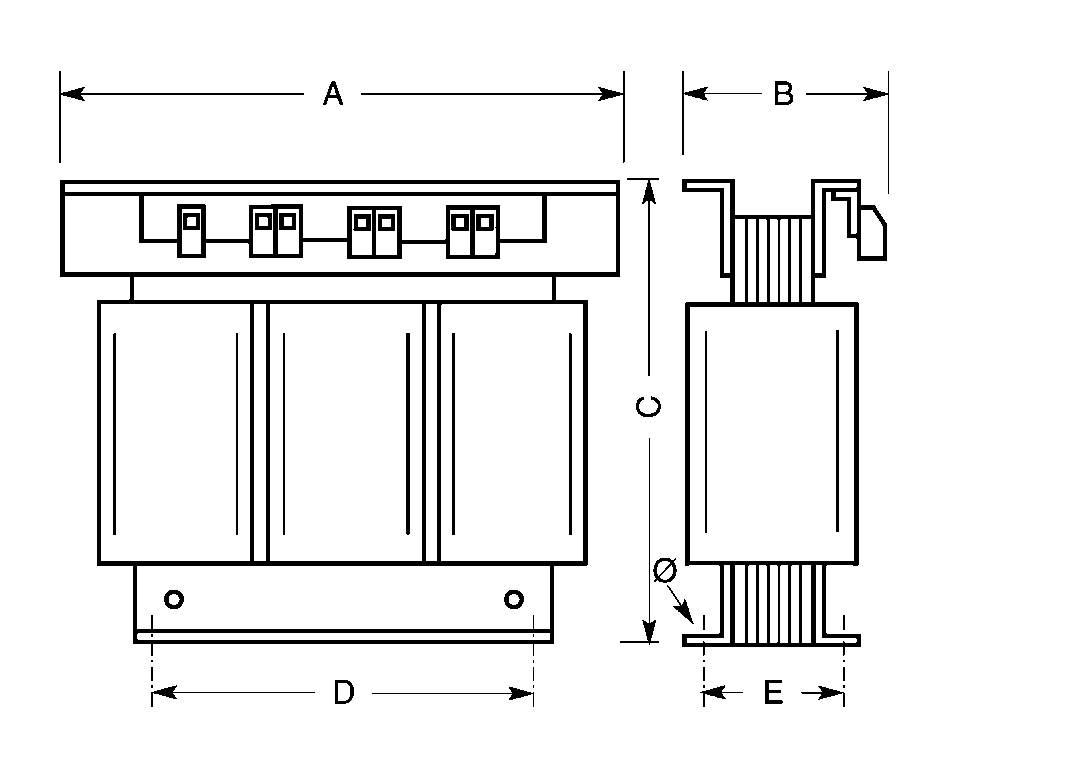

Size A x B x C (mm)	360x150x310mm
Size D (mm)	240mm
Size E (mm)	120mm
Weight	42.8kg
Primary connection	Screw terminals 10 mm²
Secondary connection	Screw terminals 10 mm²
Φ (mm)	11 mm
Finish	Vacuum and pressure varnish impregnated

Options
On request	Degree of protection IP23, IP44 and IP65 Other voltages and other powers Connections with sockets and power cords With fuses Treatment for tropical resistance
Option Enclosure IP20 (accessory)	U 222752
Option Enclosure IP23 (accessory)	K23EI300/004
Option Enclosure IP44 (accessory)	K44EI300/010
Option Damper (accessory)	SILENT BLOCK 20
