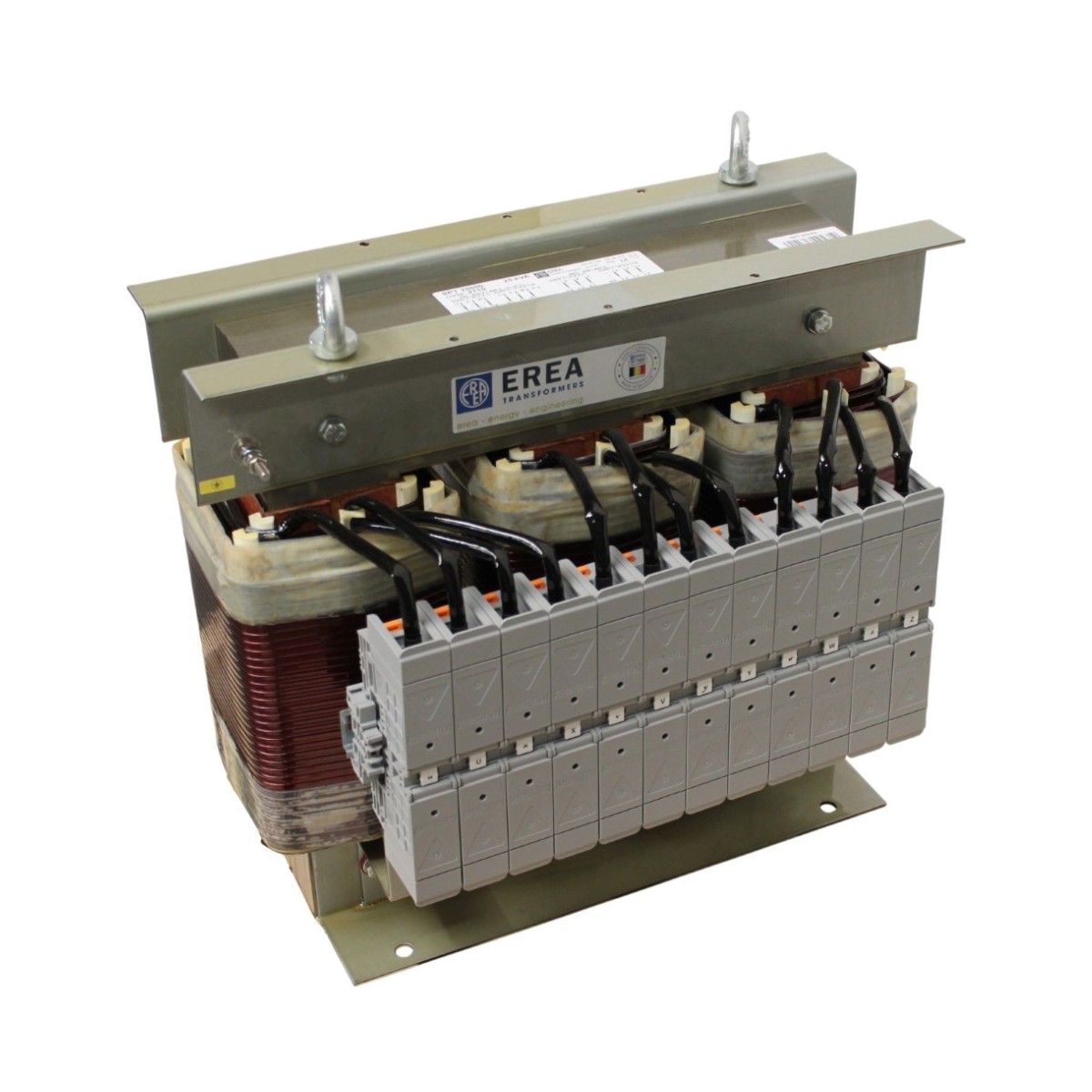

EREA 3 phase separating transformer 230-400V//230V-400V 25kVA SPT25000

Item No.: SPT25000
(Price excluding VAT) 6.833,82
8.268,92
Of betaal in termijnen vanaf 275,63 p/m. Meer info
Description

Technical specifications

Brand EREA
Commercial Order Number SPT25000
EAN 5414503004710
Class Three-phase isolating transformer

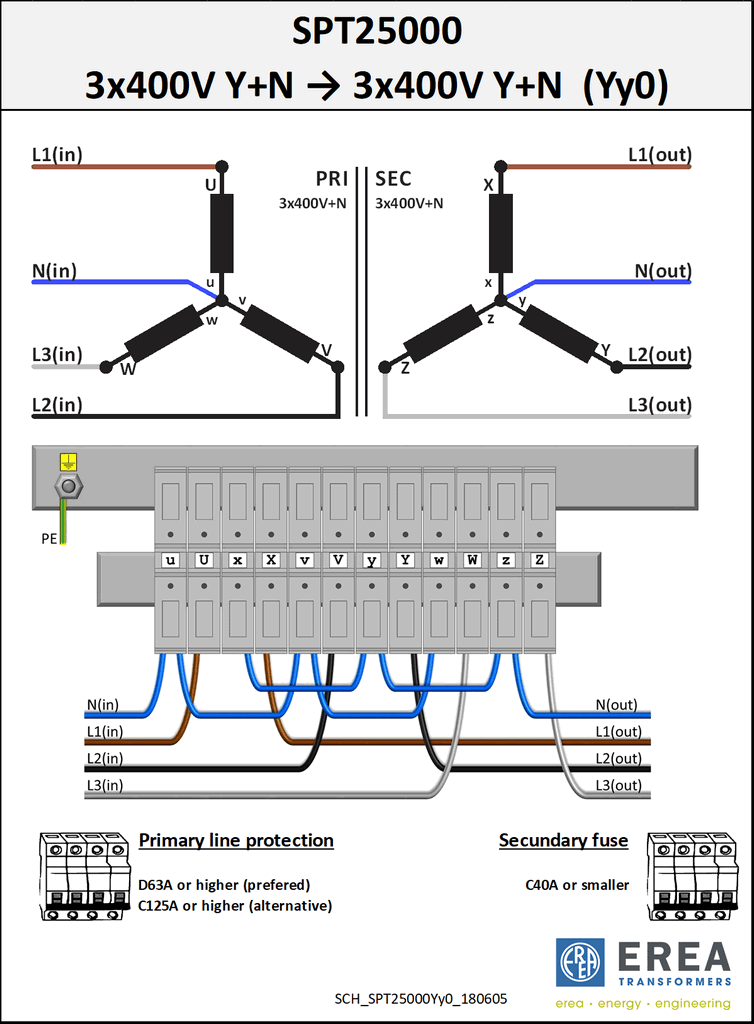

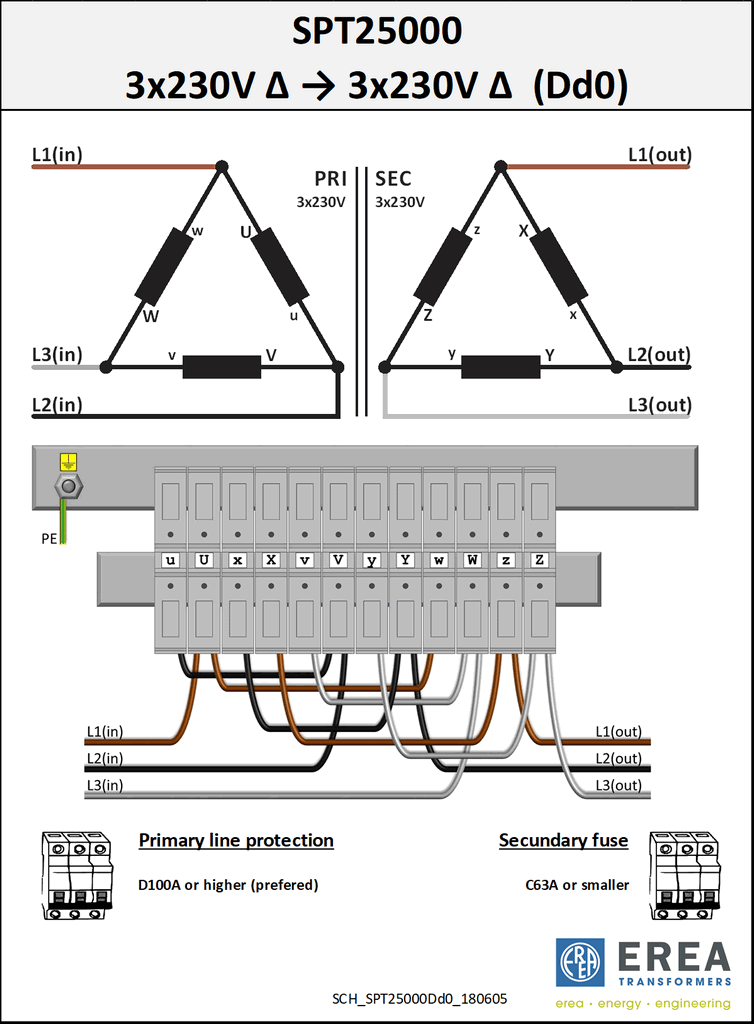

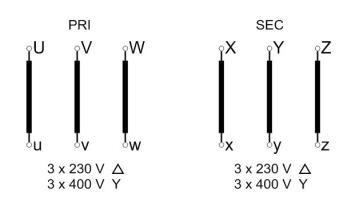

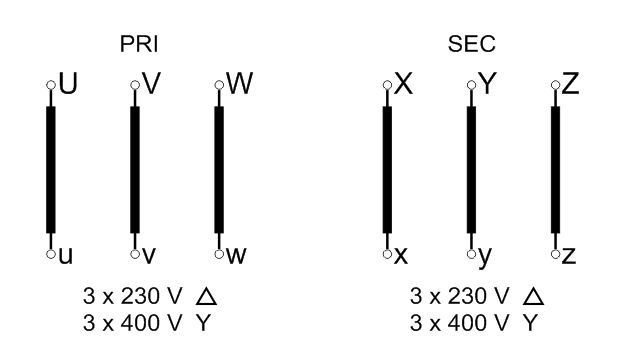

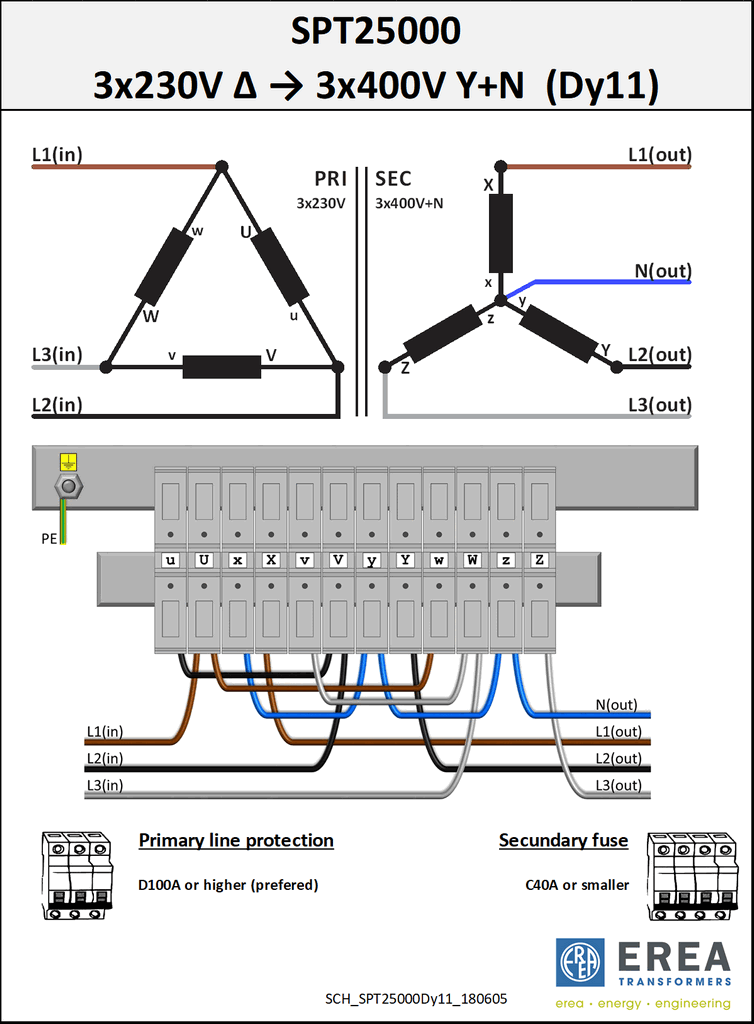

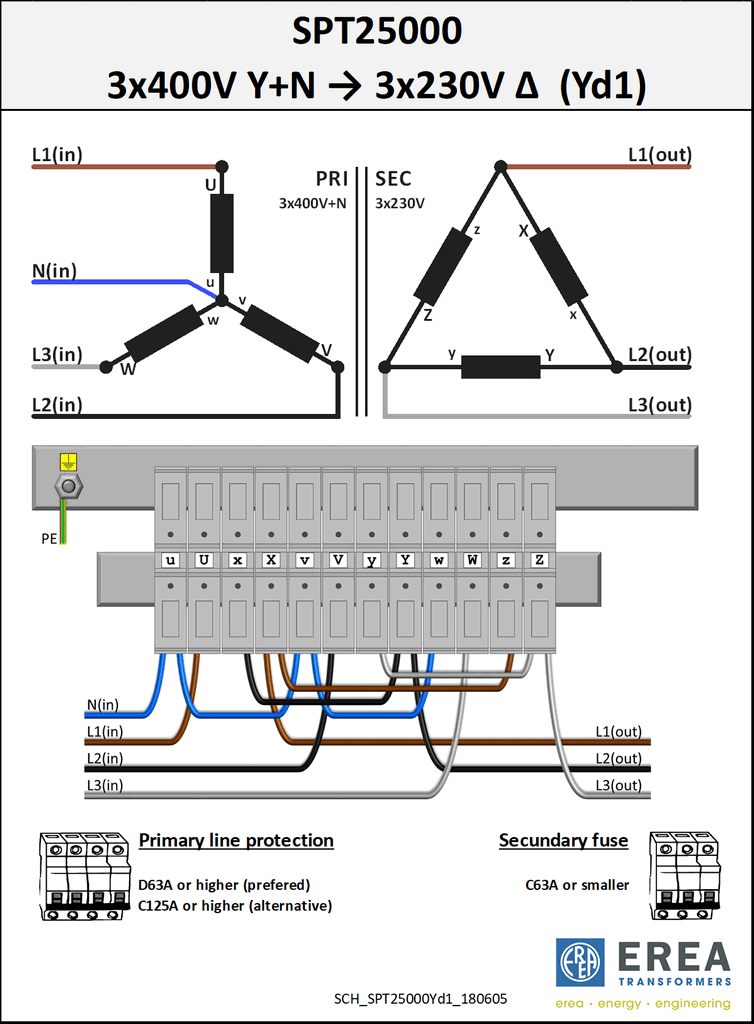

Primary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage 3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power 25000VA (25KVA)
Voltage drop (dU%) 2.97 %
Dielectric strength referred to frame (Vac) 2500 Vac
Dielectric strength to mass (Vac) 4500 Vac
Degree of protection IP00
Standards

EN 60726
EN 60076

Maximum ambient temperatur ta (°C) 40 °C
Application For Industrial Applications
Protection class Prepared for class I
Temperature Class F
Efficiency  96.4 %
Pcu (W) 747 W
Po (W) 180 W

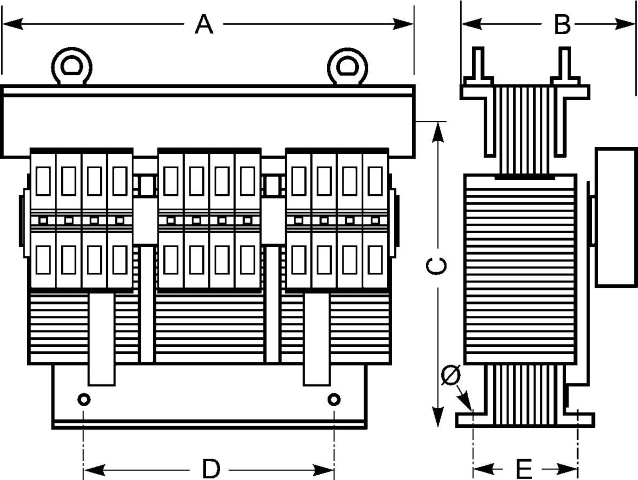

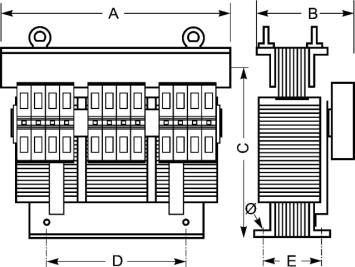

Size A x B x C (mm) 480x290x415mm
Size D (mm) 320mm
Size E (mm) 190mm
Weight 119kg
Primary connection Nut fastening M8
Secondary connection Nut fastening M8
Φ (mm) 11 mm
Finish Vacuum and pressure varnish impregnated

Options

On request Protection class II
Degree of protection IP23, IP44 and IP65
Other voltages and other powers
Zig-Zag switching groups
Connections with sockets and power cords
With fuses
With electrostatic screens
Treatment for tropical resistance
Option Enclosure IP20 (accessory) U 2222720
Option Enclosure IP23 (accessory) K23EI400/003
Option Damper (accessory) SILENT BLOCK 50
