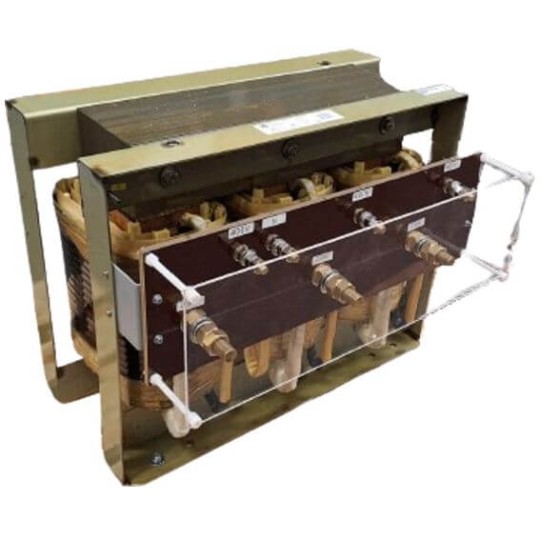

EREA 3 phase Autotransformer 0-230-400V 160kVA ATT 160000

Item No.: ATT 160000

Delivery time: Please contact us for current delivery times

Enclosure

Trillingsdemper

22.579,13 16.934,35
(Price excluding VAT): 13.995,33
You Save: 25%

Of betaal in termijnen vanaf 564,48 p/m. Meer info

EAN
5,41E+12
SKU
ATT 160000

Technical specifications

Brand EREA
Commercial Order Number ATT 160000
EAN 5414503000408
Class Three-phase autotransformer

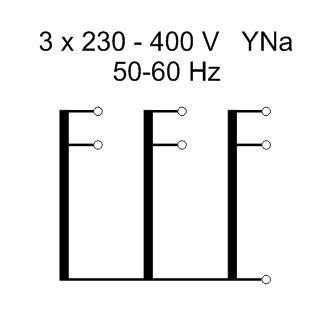

Primary voltage 3x 0-230-400 Vac Y+N
Secondary voltage 3x 0-230-400 Vac Y+N
Rated power 160000VA (160KVA)
Degree of protection IP00
Voltage drop (dU%) 0.64%
Efficiency (%) 99.1%
Pcu (W) 1045 W
Po (W) 465 W
Dielectric strength referred to frame (Vac) 2500 Vac
Standards EN 60726
EN 60076
Application For Industrial Applications
Protection class Prepared for class I
Maximum ambient temperatur ta (°C) 40 °C
Temperature Class F

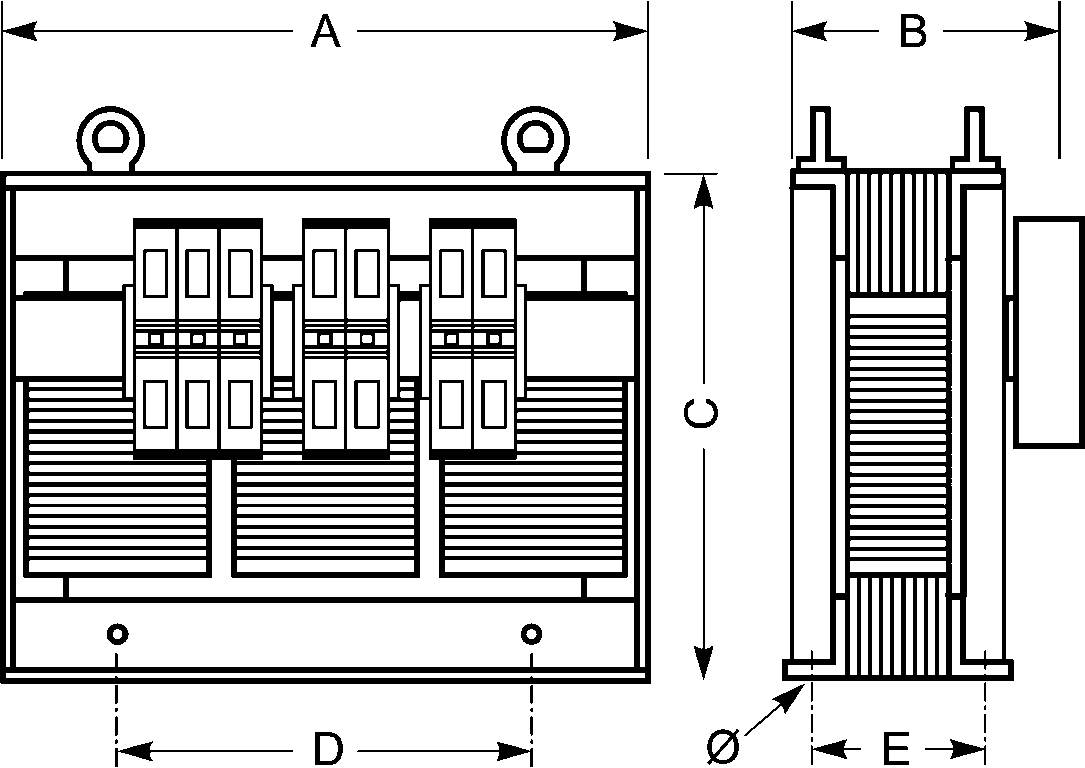

Size A x B x C (mm) 640x430x500mm
Size D (mm) 400mm
Size E (mm) 245mm
Weight 341kg
Primary connection Nut fastening M12
Secondary connection Nut fastening M12
Φ (mm) 11 mm
Finish Vacuum and pressure varnish impregnated

Options

On request Degree of protection IP23, IP44 and IP65
Other voltages and other powers
Connections with sockets and power cords
With fuses
Treatment for tropical resistance
Option Enclosure IP20 (accessory) K20EI500/004
Option Enclosure IP23 (accessory) K23EI500/004
Option Enclosure IP44 (accessory) K44EI500/020
Option Damper (accessory) SILENT BLOCK 120
