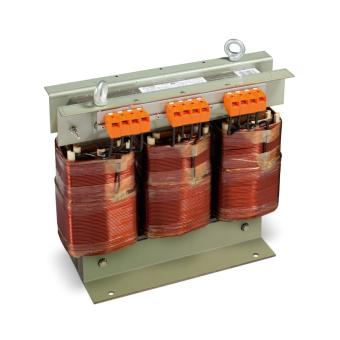

EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 10000VA (10KVA) SPT10000/BTE

Name: EREA 3 phase transformer Upri 230V ∆ - 400V Y+N // Usec 230V ∆ - 400V Y+N 10000VA (10KVA) SPT10000/BTE
Brand: EREA
SKU: SPT 10000/BTE
Price: 4905.76 EUR
Availability: InStock

Item No.: SPT 10000/BTE

Current delivery time (contact us)

€4.905,76

Enclosure

Trillingsdemper

Of betaal in termijnen vanaf €163,53 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT 10000/BTE
EAN	5414503099181
Class	Energy Efficient Protective Transformer (BTE)
Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	10000VA (10KVA)
Degree of protection	IP00
Diëlektrische vastheid (Vac)	4500 Vac
Voltage drop (dU%)	2.03%
Dielectric strength to mass (Vac)	2500 Vac
Standards	EN 61558-2-4
Max. ambient temperature Ta (°C)	40 °C
Temperature Class	F
Application	For Industrial Applications
Efficiency	97.1%
Pcu (W)	220W
Po (W)	78W
Size A x B x C (mm)	480x190x415mm
Size D (mm)	320mm
Size E (mm)	160mm
Weight	84kg
Primary connection	Screw terminals 10 mm;
Secondary connection	Screw terminals 10 mm;
Finish	Vacuum and pressure impregnated
Φ (mm)	11 mm

Options
On request	Protection Class II Degree of protection IP23, IP44 and IP65 Other voltages and other capacities Zig-Zag switching groups Connections with sockets and with power cords With fuses With electrostatic screens Tropical Resistance Treatment
Option enclosure IP20 (accessoire)	K20BTE/040
Option enclosure IP23 (accessoire)	K23BTE/040
Option Damper (accessoire)	SILENT BLOCK 50
