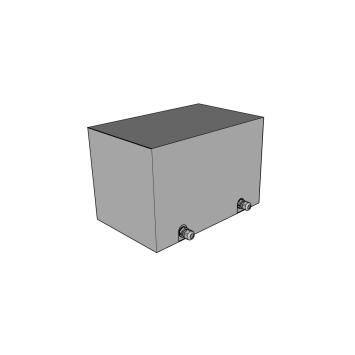

EREA 3 phase isolation transformer 230-400V//230V-400V 4kVA SPT4000/BTE/IP65

Name: EREA 3 phase isolation transformer 230-400V//230V-400V 4kVA SPT4000/BTE/IP65
Brand: EREA
SKU: SPT4000/BTE/IP65
Price: 4224.28 EUR
Availability: InStock

Item No.: SPT4000/BTE/IP65

Delivery time: 2-3 weeks (contact us)

€4.224,28

Of betaal in termijnen vanaf €140,81 p/m. Meer info

Description

Technical specifications
Brand	EREA
Commercial Order Number	SPT4000/BTE/IP65
EAN	5414503121394
Series	Blue e³
Energy efficient	Yes
Class	Three-phase isolating transformer
Primary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Secondary voltage	3x 230 Vac ∆ -- 3x 400 Vac Y+N
Rated power	4000VA (4KVA)
Voltage drop (dU%)	2.8%
Dielectric strength referred to frame (Vac)	2500 Vac
Dielectric strength to mass (Vac)	4500 Vac
Degree of protection	IP65
Standards	EN 61558-2-4
Maximum ambient temperatur ta (°C)	40 °C
Application	For Industrial Applications
Protection class	Prepared for class I
Temperature Class	F
Efficiency	96.7%
Pcu (W)	160 W
Po (W)	58 W
Size A x B x C (mm)	409x259x328mm
Weight	60kg
Primary connection	Screw terminals 4 mm²
Secondary connection	Screw terminals 4 mm²
Finish	Vacuum and pressure varnish impregnated
