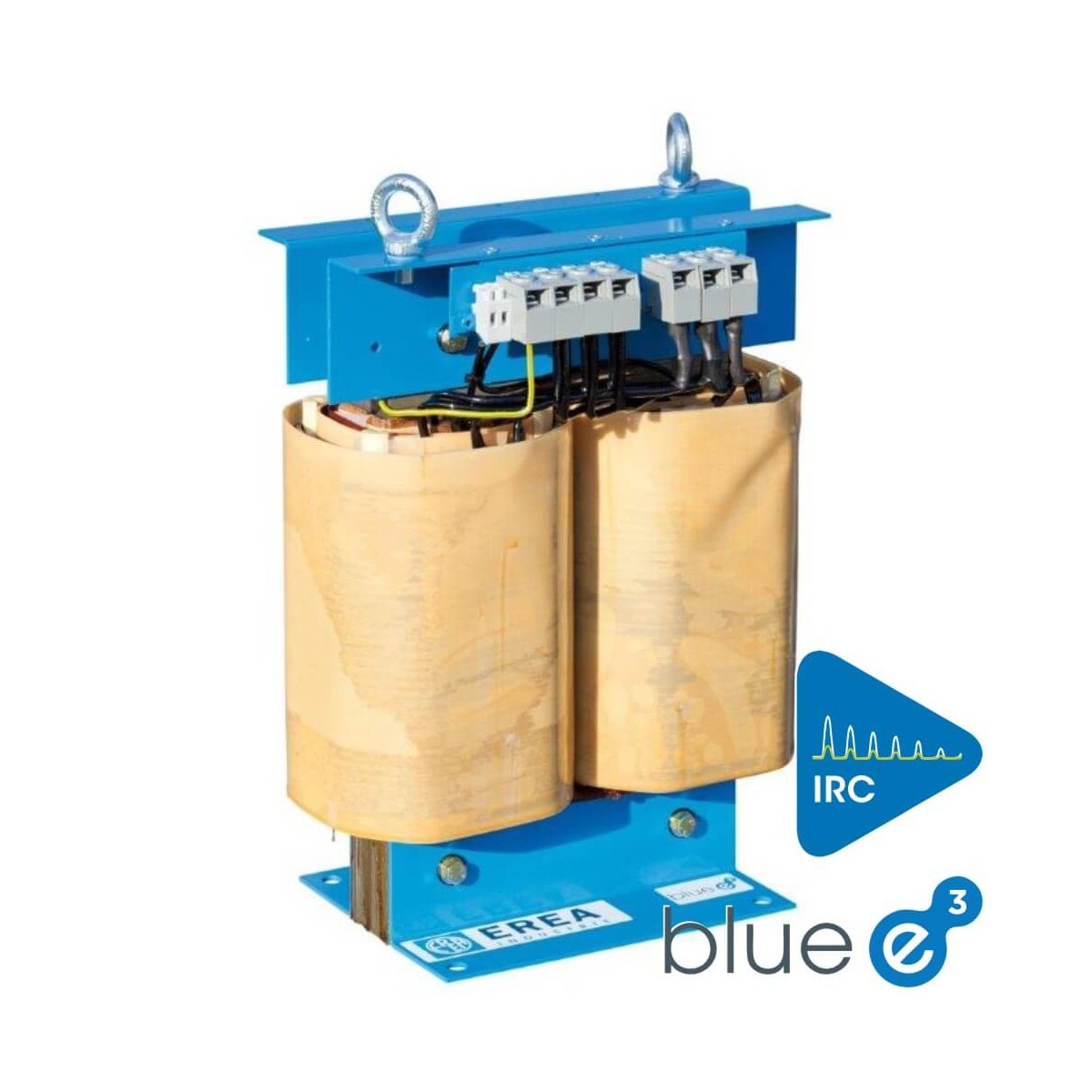

EREA 1 phase medical transformer 230V//230V 1,6kVA-BTE 230TMHD1600/BTE

Item No.: 230TMHD1600/BTE

Delivery time: 2 to 3 weeks (contact us)

1.514,75
(Price excluding VAT)
Trillingsdemper
Of betaal in termijnen vanaf 50,49 p/m. Meer info
Description

Technical specifications

Brand EREA
Commercial Order Number 230TMHD1600/BTE
EAN 5414503103581
Class Single-phase isolating transformer energy-efficient for application in medical purpose rooms - IP00 - Upri 230V // Usec 230V - Power 1600VA
Primary voltage 230 Vac
Secondary voltage 230 Vac
Power 1.6KVA
Degree of protection IP00
Voltage drop (dU%) 2.8%
Dielectric Strenght (Vac) 4500Vac
Dielectric strength to mass (Vac)) 2500Vac
Standards

EN 61558-2-4

EN 60742

Max. ambient temperature Ta (°C) 50 °C
Temperature class B
Application For all applications in medical purpose rooms
Protection class Prepared for class I
Efficiency 96.8%
Pcu (W) 44W
Po (W) 9,1W
Size A x B x C (mm) 240x150x225mm
Size D (mm) 200mm
Size E (mm) 127mm
Weight 32kg
Primary connection Screw terminals
Secondary connection Screw terminals
Finish Vacuum- and pressure- varnish impregnated
Φ (mm) 11mm

Options

On request Other voltage and power ratings
Connections with insulated wires and mains cables
Option Housing IP20 (accessory)
Option Housing IP23 (accessory)
Option Silent Block (accessory) SILENT BLOCK 50
